A PAIR CARL ZEISS DEK MOUNTED BINOCULARS 7X50 H
A PAIR CARL ZEISS DEK MOUNTED BINOCULARS 7X50 H

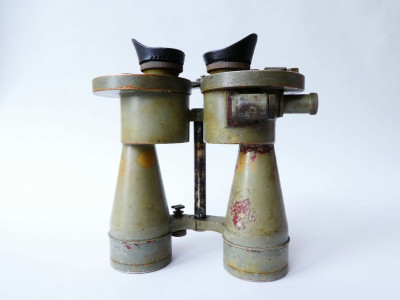

This 7x50 is a special version of the 7x50 H, produced by Zeiss around 1939-1940.
They were mounted on the deck above a aiming device.
They are equipped within the right eyepiece with a vertical line that is identical to that of the U.D.F binoculars.

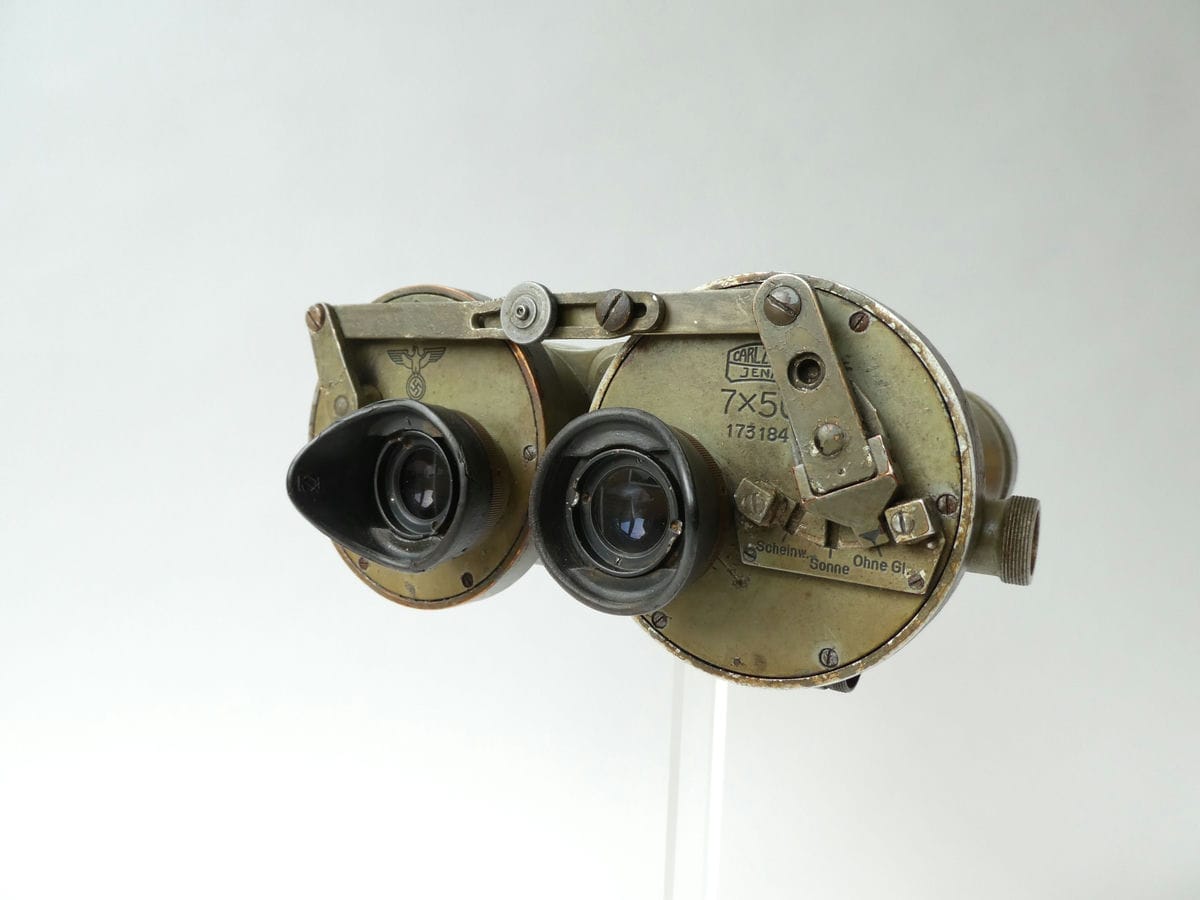

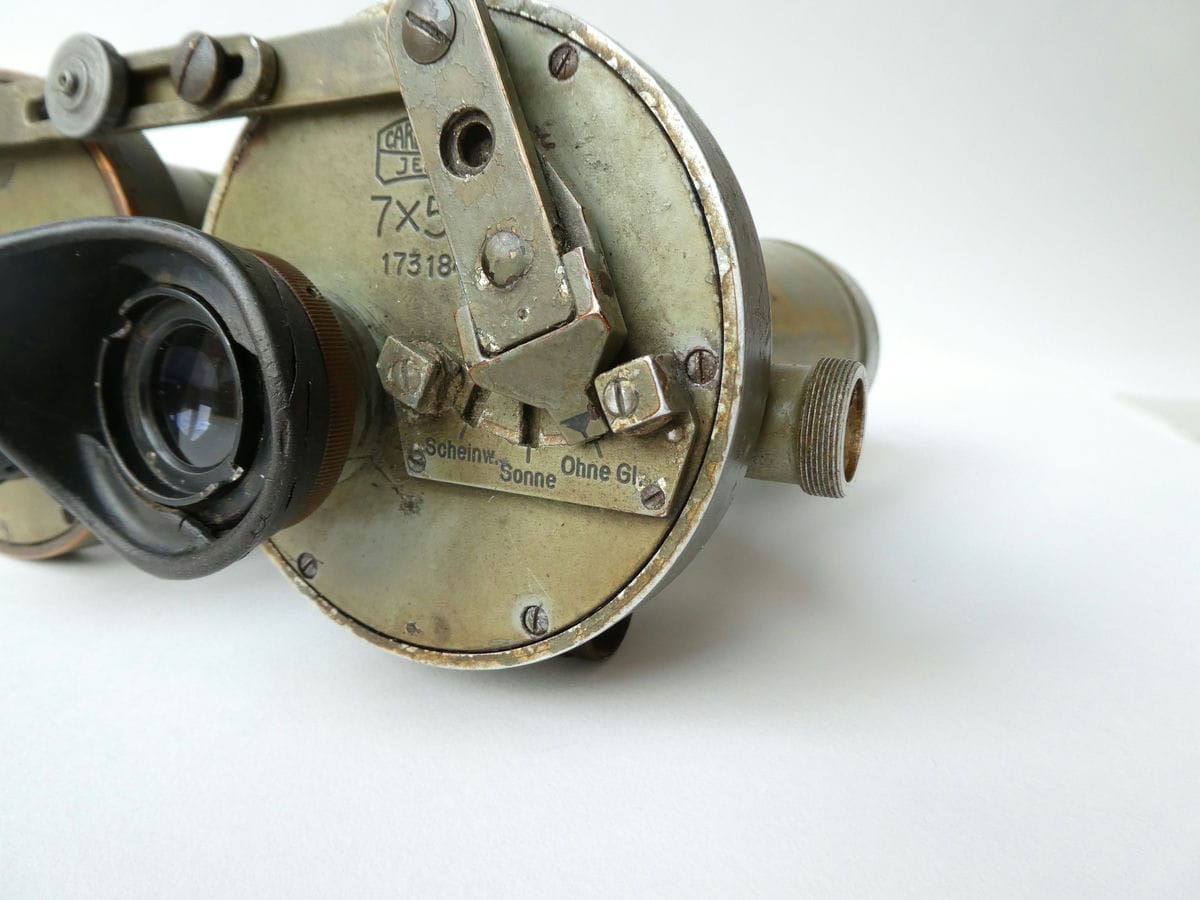

The binoculars are equipped with an innovative mechanical lever system that allows the simultaneous adjustment
of the filters on both eyepieces,
different colors can be chosen in addition to the neutral bright.

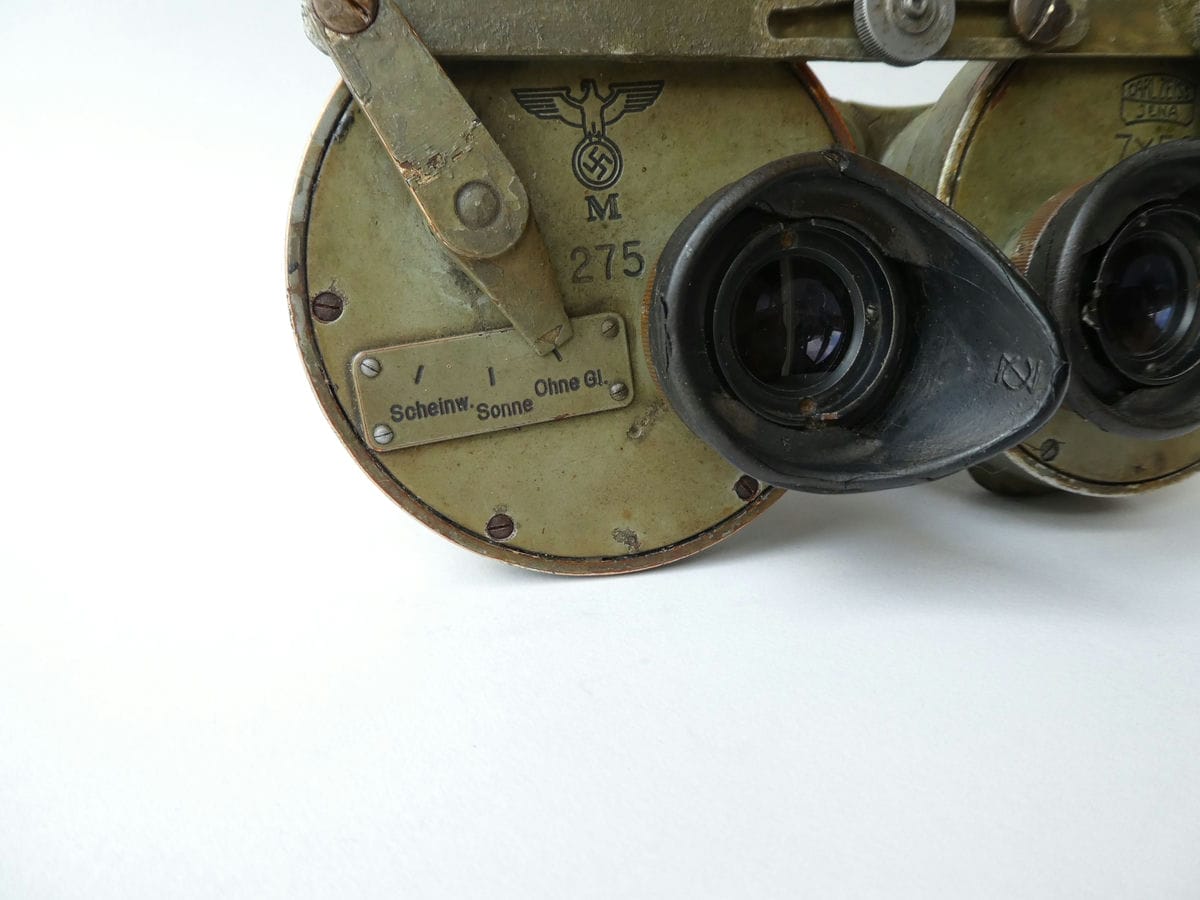

On the ocular cover plates; name, serial numbers, and the eagle from the Kriegsmarine with M and IV / 1.

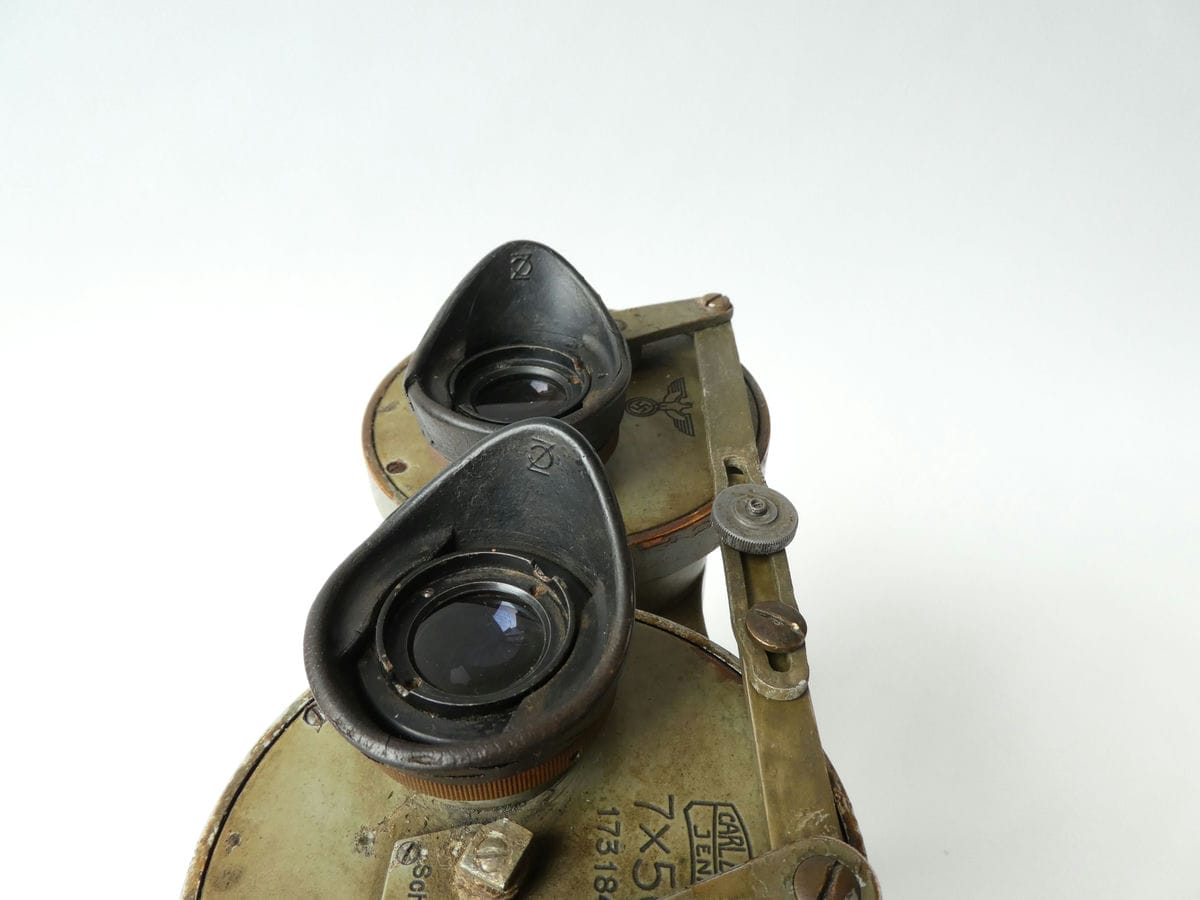

The rubbers eye cups are original and signed by Zeiss met CZ.
Specifications:
Power: 7x
Coated optics
Field of view: 7,3 degrees
128 meters at 1000 meters
Objective diameter: 1,97 inches 50mm
Construction: Porro 2 prism
Weight: 1,470 kg
Dates of manufacture: 1939-1940
Serial number: 173184
Marine number: 275
( T ) transparent coated optics
"H" construction (Helligkeit) high light transmission, an increased brightness
Alloy body with olive gray paint (and some patina)
Internal filters are yellow, dark and clear.
Very rare, with provenance!
SOLD
